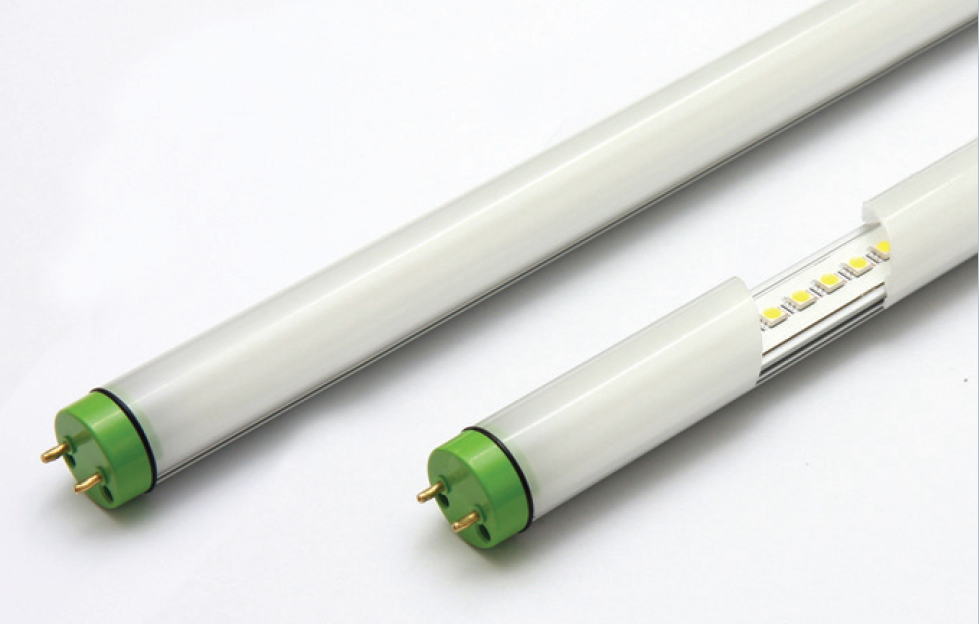

LED TUBE is environmentally friendly products that anyone can use easily at home, in the office, domestic and overseas government and public offices. Product life of 10 years, 50,000 hours satisfies customers much more economically and practically than general fluorescent light. Also it is well-being products to radiate harmful UV and to prevent the inducement of pest which respond to UV.
Item | 1,198mm, 22W | 580mm, 12W | ||
ELT22CDD | ELT22CWC | ELT12CDD | ELT12CWD | |
Power |
22W |
12W | ||
Input | DC 570mA, 40V | DC 350mA, 34V | ||
Type | Diffuser Cover | |||
Flux | 2,400 lm | 2,200 lm | 1,250 lm | 1,170 lm |
Efficiency | 110 lm/W | 100 lm/W | 105 lm/W | 99 lm/W |
Color Rendering | 80 Ra | 80 Ra | 80 Ra | 80 Ra |
Illuminace@1m | 750 lx | 700 lx | 360 lx | 350 lx |
Lifetime | 50,000 hour | |||
Color Temp. | Cool White(5,700K) | Warm White(3,000K) | Cool White(5,700K) | Warm White(3,000K) |
Direction Angle | 150¢ª | |||
Base Type | G13 | |||
Dimension | 1,198mm(4ft.) / 25.6¥õ | 580mm/590mm(2ft.) / 25.6¥õ | ||
Weight | 360g | 175g | ||
Temp. Range | Operating : -10 ~ 40¢ª |
Item | 900mm, 14W | 1,500mm, 25W | 1,800mm, 30W | 2,400mm, 40W |
ELT14CDD/ELT14CWD | ELT25CDD/ELT25CWD | ELT30CDD/ELT30CWD | ELT40CDD/ELT40CWD | |
Power |
14W |
25W | 30W | 40W |
Input | DC 24V | |||
Type | Diffuser Cover | |||
Flux | 1,260 lm | 2,250 lm | 2,610 lm | 3,510 lm |
Efficiency | 90 lm/W | 90 lm/W | 90 lm/W | 90 lm/W |
Color Rendering | 80 Ra | 80 Ra | 80 Ra | 80 Ra |
Lifetime | 50,000 hour | |||
Color Temp. | Cool White(5,700K)/Warm White(3,000K) | |||
Direction Angle | 150¢ª | |||
Base Type | G13 | |||
Dimension | 894mm(3ft.) / 25.6¥õ | 1,449mm(5ft.) / 25.6¥õ | 1,763mm/590mm(6ft.) / 25.6¥õ | 2,367mm(8ft.) / 25.6¥õ |
Weight | 262g | 445g | 519g | 693g |
Temp. Range | Operating : -10 ~ 40¢ª |
