GU5.3
- Features
- reducing over 85% of energy than halogen
1:1 exchange with existing halogen lamp : compatibility GU5.3 basis
50,000 hours
no dazzling and strobe
No dust absorption and discoloration - Usage
- showcase and cabinet lighting
art gallery and museum lighting
outside and pathway lighting
spotlight
built-in lighting in the building
playground track lighting

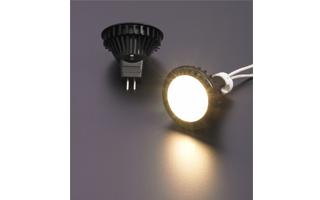

The most efficient LED lighting equipment in the world, MR 16
MR16 is designed to use MR16 type halogen lamp, widely used in the world, directly in existing luminaires. It is excellent in lifespan and safety due to maximize the protection against heat
Electrical Characteristics
- Input Voltage : AC/DC 12V
- Base : GU5.3
- Operating Temp. : -10 ~ +40℃
- Base : GU5.3
- Operating Temp. : -10 ~ +40℃
| Model | Power(W) | Direction Angle(˚) | CCT(K) | Flux(lm) | Effiency(lm/W) | Illuminace(lux@1m) | CRI |
| ELM42CWS | 4.2 | 14 | 3,000 | 220 | 52 | 1,300 | 80 Ra |
| ELM42CDS | 5,500 | 230 | 55 | 1,500 | 70 Ra | ||
| ELM42CWN | 20 | 3,000 | 220 | 52 | 1,100 | 80 Ra | |
| ELM42CDN | 5,500 | 230 | 55 | 1,300 | 70 Ra | ||
| ELM42CWM | 28 | 3,000 | 220 | 52 | 850 | 80 Ra | |
| ELM42CDM | 5,500 | 230 | 55 | 1,000 | 70 Ra | ||
| ELM42CWH | 40 | 3,000 | 220 | 52 | 500 | 80 Ra | |
| ELM42CDH | 5,500 | 230 | 55 | 600 | 70 Ra |
